Over the years, Designs & Prototypes has developed IR accessories for use with our portable FT-IR spectrometer systems.
Warm/cold blackbodies
- 1″ and 2″ diameter sizes (no 4″ available)
- Efficient Bipolar Controller
- Powered and Controlled from Spectrometer
- Temperature Range 3 to 85 C
- Readout Accurate to ±0.2 C
- Use on Model 102 or TurboFT

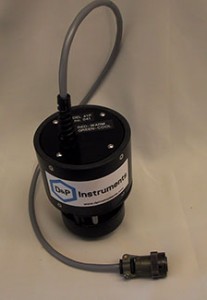

(Model 102 Pigtail Blackbody Shown)
IR Telescopes
- 1″, 2″, 4″ diameter sizes
- FOV 4.8°, 2.4°, and 1.2° respectively
- Through the lens optical viewer
- Compact Cassegrain Design (4″)
- High Quality Optics for Imaging
- Sliding Shroud for Stray Light (4″)
- All Reflective Optics
- Use on Model 102 or TurboFT

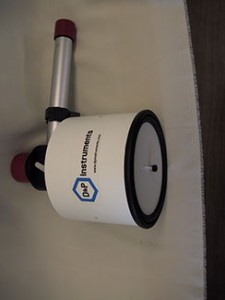

4″ IR Telescope as shown at left
- 4″ (10cm) Diameter IR Telescope
- Overall Dimensions: (w/o viewer)
- 5.5″ Dia. X 4.0″L; viewer adds 3.5″
- (14cm Dia. X 10cm L; viewer adds 8.9cm)
Radiometric Field Accessories
- 1″ Thermoelectrically controlled hot/cold blackbody calibrator
- Labsphere brand 5″ x 5″ and 10″ x 10″ diffuse gold plates
- Heavy duty tripod
- 4 liter liquid nitrogen pouring Dewar bottle
